LOW+FOG, and HI+LOW+FOG, mod


New here and not sure if anyone has posted this exact mod here, but I've found this mod on another site and I'd thought I share it.

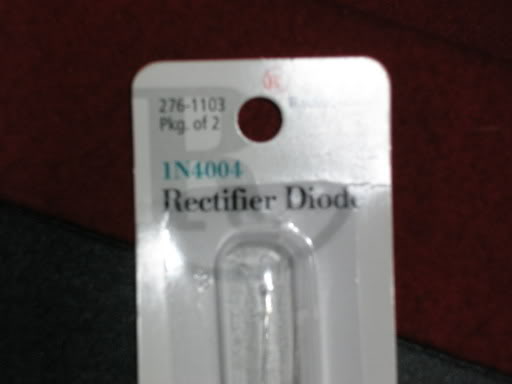

Here's what I did, it's still using the same diodes, just a different way of going about it.
The pictures I'm showing are from Kenny C at FULLSIZEforums.
Attachment 3355

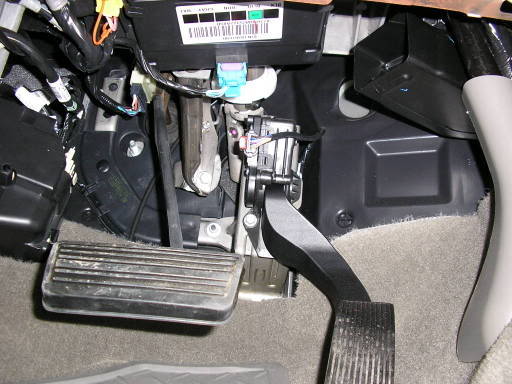

Attachment 3356
Attachment 3357

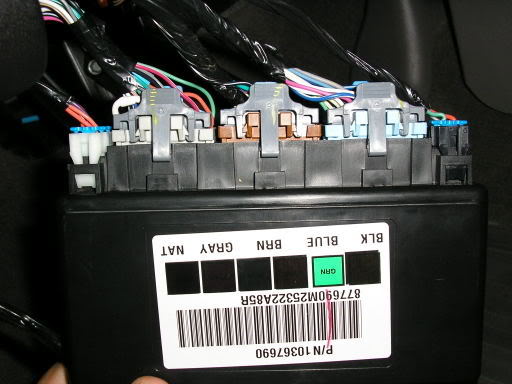

Attachment 3358
Attachment 3359
Attachment 3360
Attachment 3361
Attachment 3362

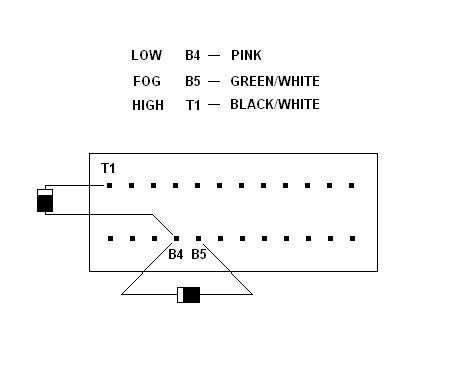

Heres a layout of the connector, you put the diodes in from the top where the wire come in. Make sure to have the Diode going in the right direction. This will give you "Low + Fogs", and when in Hi, it will give you "Hi + Low + Fogs" (Make sure to use shrink tube on the diodes.)
As I said above this is all from Kenny C, from FULLSIZEforums. I take no credit for this mod, just sharing it with others. I've done this mod and it works great.

RE: LOW+FOG, and HI+LOW+FOG, mod


So with this mod are the fog lights always on when the low lights go on? Or does it just allow the fog lights and the low lights to stay on the the hi's are turned on. If you could let me know before I get started on this project I would appreciate it. Thanks.
