My buddy and I installed a new Mishimoto Radiator and Intercooler in his truck a few weeks ago and I thought I would share with you guys. He meant to do an all out how to guide, but the batteries died on the camera. We started working on the truck while we waited on his significant other to bring more.

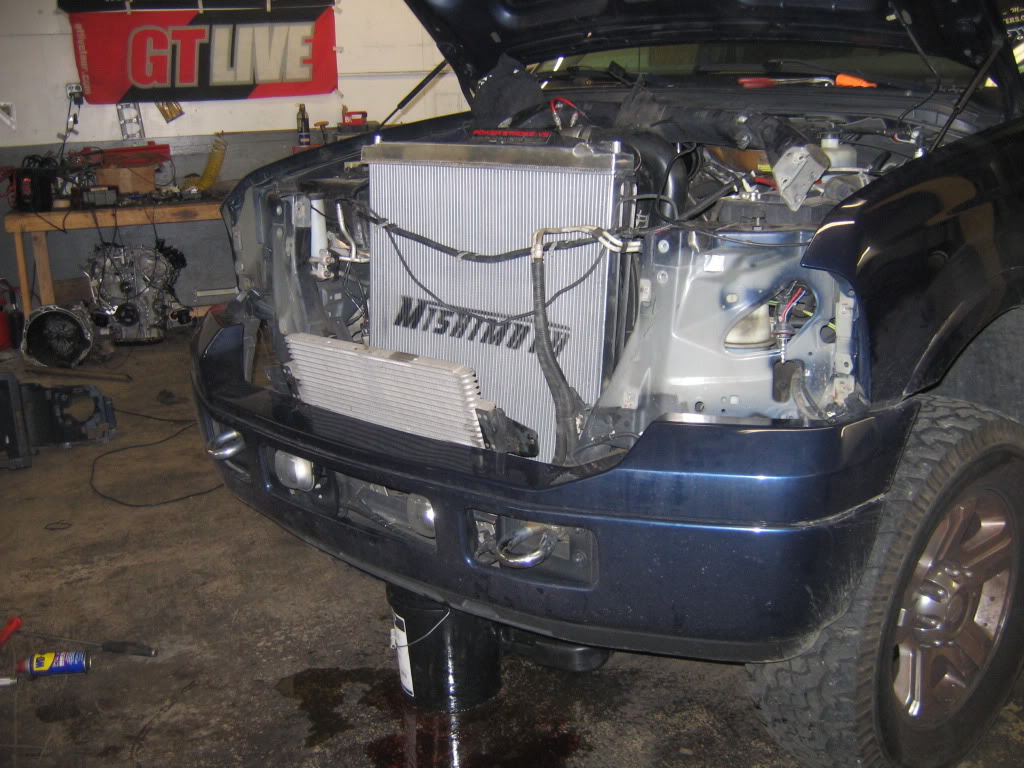

This is how far we were once she arrived.

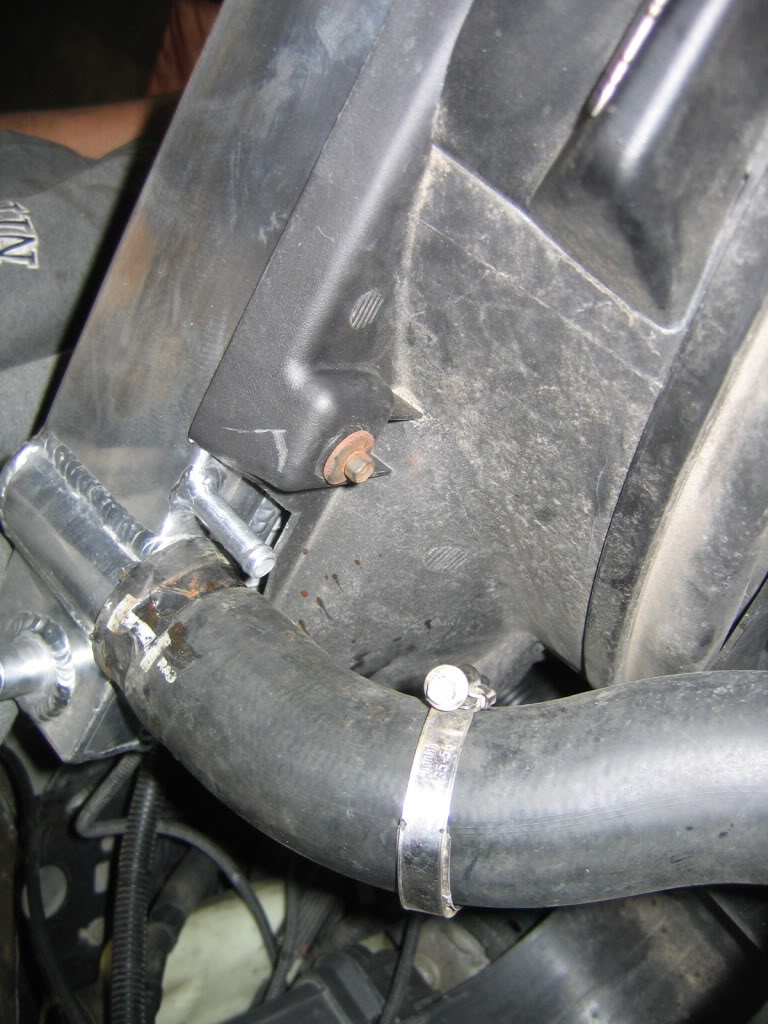

Hoses connected:

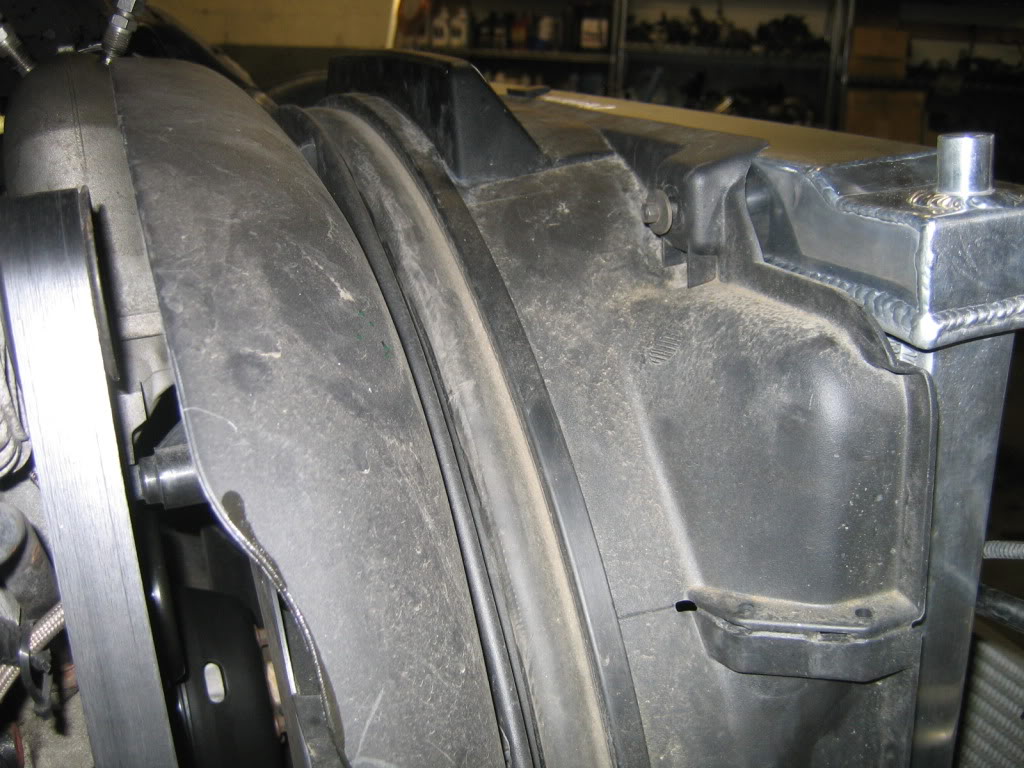

Fan Shroud on back of new radiator:

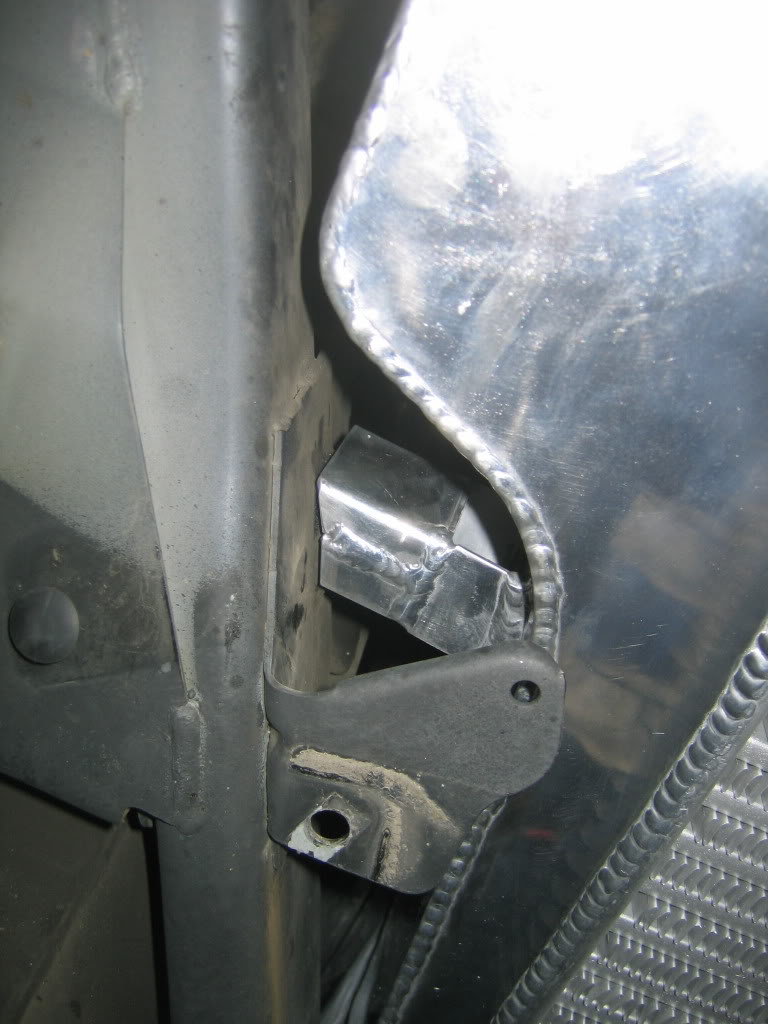

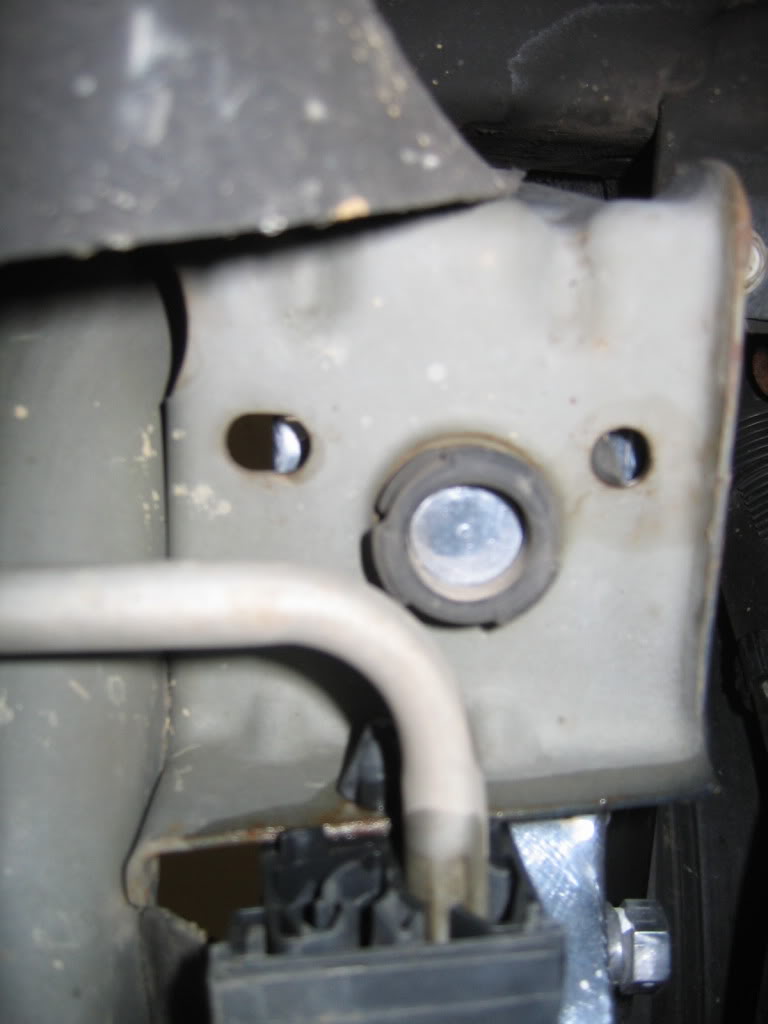

Mounting points on radiator:

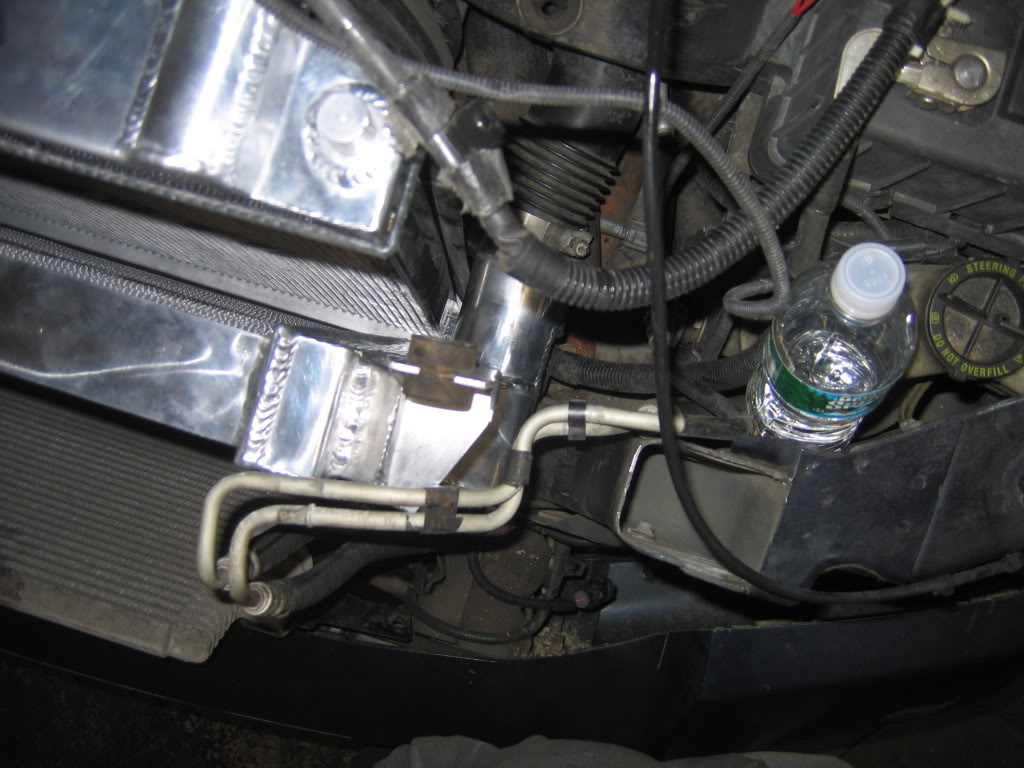

Transmission lines in!


Easy work to be honest. Uninstall rad/IC, drop in Mishimoto rad/IC, connect charge pipes, connect water pipes and fill/bleed coolant system.

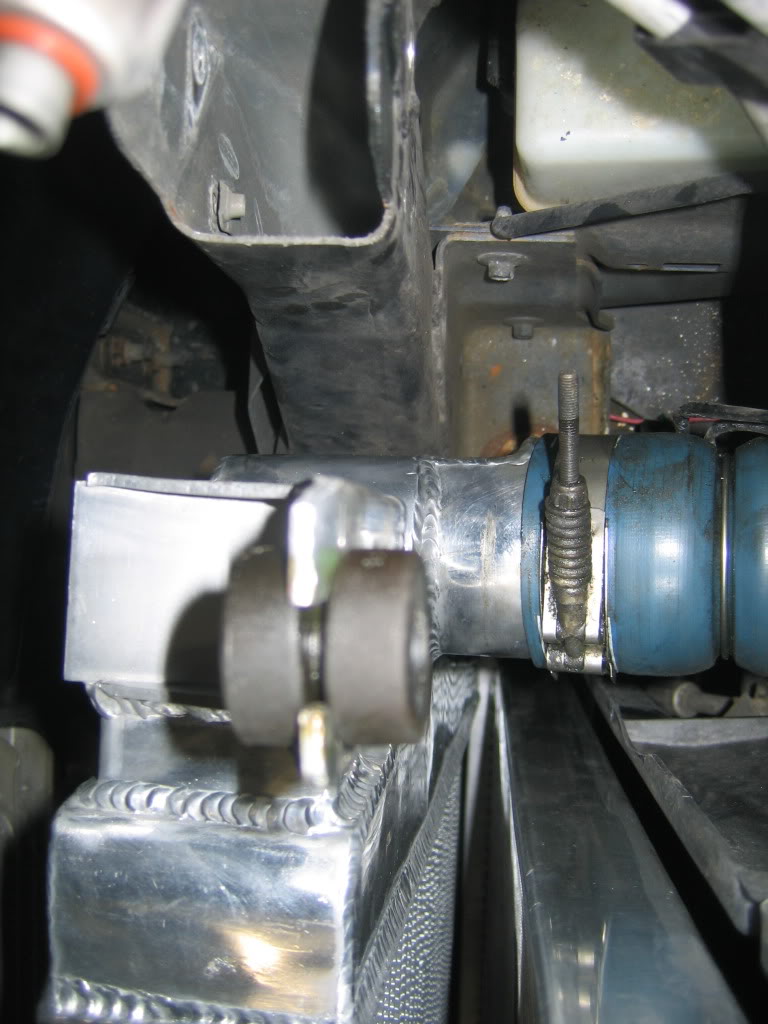

Charge piping connected:

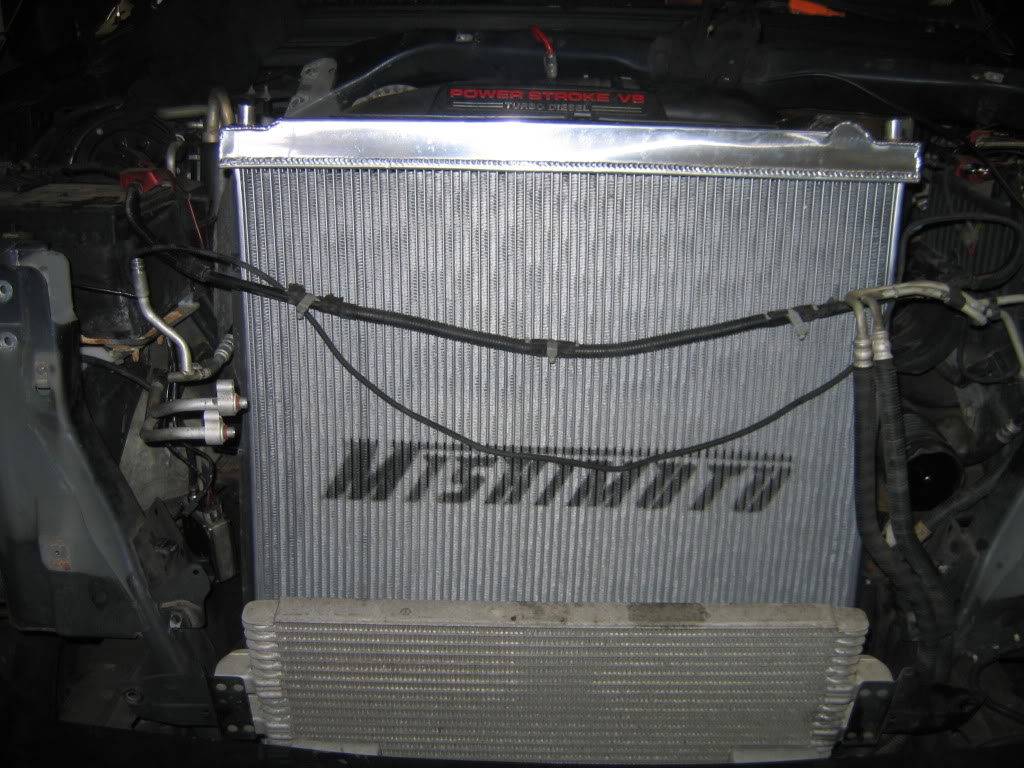

The intercooler fits perfectly:

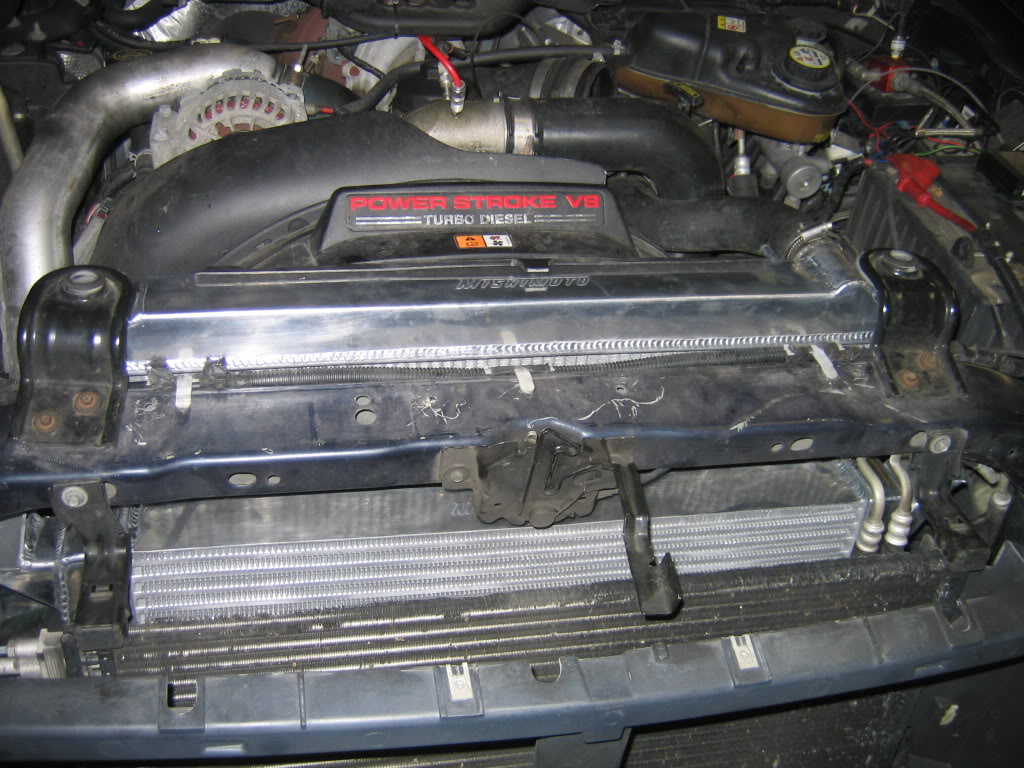

Picture of the final product:



Hopefully, we can get this bad boy on a dyno soon to see what kinds of gains we got from the IC!

Link to thread he created



That looks great. You guys did a good job !!



Thanks!
